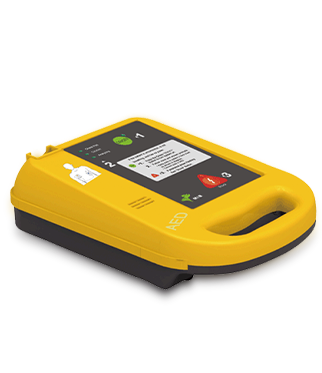

AED7000

Automatic External Defibrillator

Three-step defibrillation process

Two-button operation

Extensive voice and visual prompts for the operator

Biphasic energy output

Lock-out protection to prevent inadvertent defibrillation

Specification

Defibrillator

Category Specification

Output Biphasic Truncated exponential

Energy Sequence 150,150,200J

Charge Time 8 sec. to 150J

10 sec to 200 J (New battery)

Analysis Time 9 sec.

The maximum time from the initiation of rhythm analysis to readiness for discharge with a new battery. Less than 30 seconds

The maximum time from the initiation of rhythm analy sis to readiness for discharge after 6 shocks. Less than 35 seconds

The maximum time from initially switching power on to readiness for discharge. Less than 25 seconds

Audible Prompts 20 audible prompts

Visual Prompts LED prompts

Controls Two buttons- On/Off, Shock

Output Energy Accuracy +15% into any impedance from 25 to 175Q

Output disabled when the patient impedance is outside Limits 20Q to 200Q

Battery

Part No CR123A-4×2

Non-rechargeable 12V d.c. 3.0Ah

Capacity

100 discharges at 200 Joules or 120 discharges at 150 Joules

Shelf Life (25C±15C)

10 years (5 years storage + 5 years standby)5 years standby (after installation)

Physical

Dimensions 303x 216×89 mm

Weight 2.0 Kg

Operating Temperature 0Cto 40C

Operating Humidity

Relative humidity between 30% and 95%(non-condensing)

Storage Temperature

(without battery) -20C to 55C

Storage Humidity

(without battery) Up to 93% (non-condensing)
