Product Description

Bionic Cough Simulator

Respower^TM Respiratory Neuromuscular Stimulator

Cuff Guard^TM Cuff Pressure Gauge

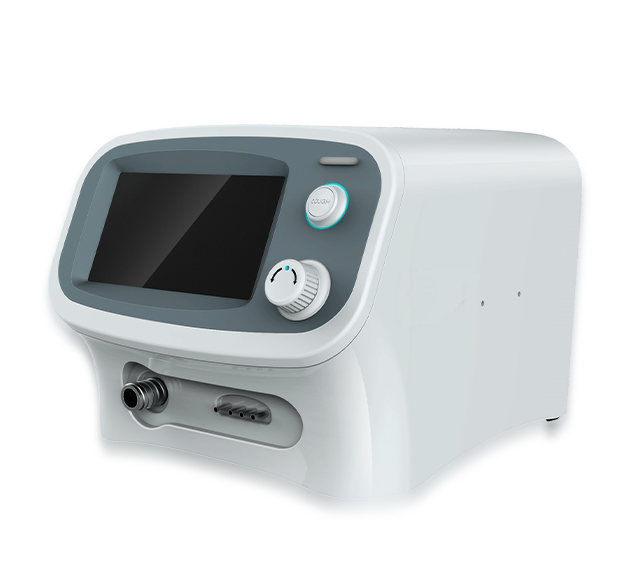

Bionic Cough Simulator——Product Description

Bionic Cough Simulator is mainly used for expectoration treatment of patients within invasive mechanical ventilation

Through the unique design of the pipeline, it can be connected with the ventilator air pipeline and the patient, and can work in parallel with the invasive ventilator in a time-sharing way

Through multiple sensors to monitor the respiratory status of patients in real time, ensure the synchronization of expectoration and mechanical ventilation, and maintain positive end expiratory pressure

It can replace the manual sputum suction work, reduce the workload and infection risk of doctors and patients

Bionic Cough Simulator——Working Principle

Working principle of Bionic Cough Simulator:

It can simulate human's natural physiological cough, connect with ventilator's air circuit and patients through specially designed pipeline, and work in time-sharing parallel with invasive ventilator :

Ventilator

T-type valve

Bionic Cough Simulator

in the inspiratory phase, the ventilator normally supplies air to the patient;

in the expiratory phase, Bionic Cough Simulator usesthe high-speed air flow to bring the sputum out of thedeep lung without disconnect-ing the ventilator

Bionic Cough Simulator——Working Parameter

Working Condition：

Ambient temperature 10℃~40℃

Relative humidity Less than 80%

Atmospheric pressure 700hPa~1060hPa

Power supply voltage 100~240V，3.6A~1.5A，50/60Hz

Performance parameter

Max negative pressure 30cmH2O~90cmH2O

Minimum tidal volume 200ml~900ml

Coughing times 1~10 times

Quick Cough On / Off

Cycle 1~120 minutes

Pressure display Range：-100cmH2O~100 cmH2O；

Resolution：1 cmH2O；Accuracy：±2 cmH2O

Bionic Cough Simulator--Application in cOVID-19

The Novel Coronavirus Pneumonia Treatment Plan (Trial Seventh Edition)is emphasized in the intensive care unit for invasive mechanical ventilation.

According to the situation of airway secretions, closed sputum suction was selected, and bronchoscopy was performed if necessary.

Bionic Cough Simulator is applied to severe novel coronavirus pneumonia patients.

1.Continuously open the invasive ventilator, safely discharge the sputum from the deep lung, and improve the cure rate;

2. Closed expectoration, reduce the risk of infection; automatic operation, reduce the burden of medical work;

3. Deep sputum from the lungs can be used as a test specimen to reduce the risk of bronchial lavage and other high-risk sampling operations.

Cuff Guard^TM Cuff Pressure Gauge——Product Description

The device can be used for patients with invasive mechanical ventilation to continuously monitor the pressure in the cuff of artificial airway in real time;

The accuracy is as high as ± 0.12 cmHzO; digital display; audible and visual alarm when the internal pressure is too high or too low;

lt can be used for various types of tracheal intubation, tracheotomy and double lumen end tracheal intubation for clinical use.;

It can replace the traditional manual pressure measurement and reduce the risk of infection.

Cuff Guard TM Cuff Pressure Gauge——Working Parameter

Item Range

Measuring Range Measuring Range：0~100cm H2O

Alarm Range <22H20,>30cm H2O

Display Mode Digital display

Normal Working Condition Ambient temperature： 10℃~40℃

Relative humidity： Less than 80%RH

Atmospheric pressure：700hPa~1060hPa

Liquid Intake Protection IPXO

Power supply The button battery（CRS2032)3V

Cuff Guard TM Cuff Pressure Gauge——Scope of Application

Tracheotomy tube

Double lumen endotracheal tube

Endotracheal tub

Various types of endotracheal intubation for routine clinical use: general endotracheal intubation, tracheotomy and double lumen endotracheal intubation

Business License

Company Qualification

ISO13485 Certificate

CE Certificate of Bionic Cough Simulator and consumables

CE Certificate of Respiratory Neuromuscular Stimulator

CE Certificate of Cuff Pressure gauge

CE Test Report of Bionic Cough Simulator

CE Test Report of ResPower Respiratory Neuromuscular Stimulator

CE Test Report of Respiratory Neuromuscular Stimulator

CE Test Report of Cuff Pressure Gauge

Academic Papers

Academic Paper

Packaging information

Product name                                Model      Gross Weight Carton Size

Bionic Cough Simulator and consumables BCS3 10.3kg 360*380*330mm

Respiratory Neuromuscular Stimulator EDAP06 3.85kg 330*260*350mm

Cuff Pressure Gauge (12units/carton) CPG-02 3.9kg 385*227*285mm

Company profile - Beijing Yaguo Technology Co.,Ltd

Founded in the beginning of 2014, Beijing Yaguo Technology Co.,Ltd. specializes in innovative solutions of artificial airway management

and respiratory treatment, has grown into an innovative medical device enterprise combining R&D, production, and distribution functions.

Adhering to the concept of care "Integrate the power of ideas, make life more graceful", relying on advanced, safe and efficient medical

products and technical services,Yaguo has concentrated on providing series of high quality integrated solutions for medical institutions, chronic

 diseases and critical patients, which aims to be a partner for better intelligent airway management and respiratory therapy.

Independent Intellectual Property Right

So far more than 50 patents have been obtained, including 3 Patent Cooperation Treaty (PCT)

Major Achievements

Roadshow champion of the 2nd black horse games

Second place in Baidu News global influence contest

The only student of first GSP program of Singularity University in China

Awarded by Google x and AAAS as Moonshot program

Supported by the innovation fund for small and medium-sized enterprises

Excellence award in the national final of China innovation and business startups competition in2015 and 2017

Second place of China innovation and business startups competition (Beijing Region) in 2015 and2017

YAGUO Fighting with COVID-19——Media Repot

Report of scientific epidemic prevention of Yaguo on CCTV1 Evening News

Beijing satellite TV "innovation Beijing" gives an exclusive interview to YaGuo

YAGUO Fighting with COVID-19

Since the outbreak YAGUO has donated nearly 600 products to Leishenshan hospital, Tongji Hospital, Union Hospital, Zhongnan Hospital etc 20

 hospitals in Hubei Province. In addition, we also donated products to the First Affiliated Hospital of Guangzhou Medical University and Beijing You'an Hospital

YAGUO Fighting with COVID-19

Hospitals in Wuhan receive donations

Assistance on Treatment to Severe COVID-19 pneumonia; Remarkable effect

Bionic Cough Simulator Respiratory Neuromuscular Stimulator Cuff Pressure Gauge

Bionic Cough Simulator: Effectively discharging secretions from bronchi and deep lung, and help to reduce mortality; Respiratory Neuromuscular

Stimulator : Pulmonary rehabilitation training in early stage to effectively shorten weaning and extubation time of patient. Bionic Cough Simulator

and Cuff Pressure Gauge: Reducing the risk of infection between doctors and patients, and decrease the workload of medical staff.
