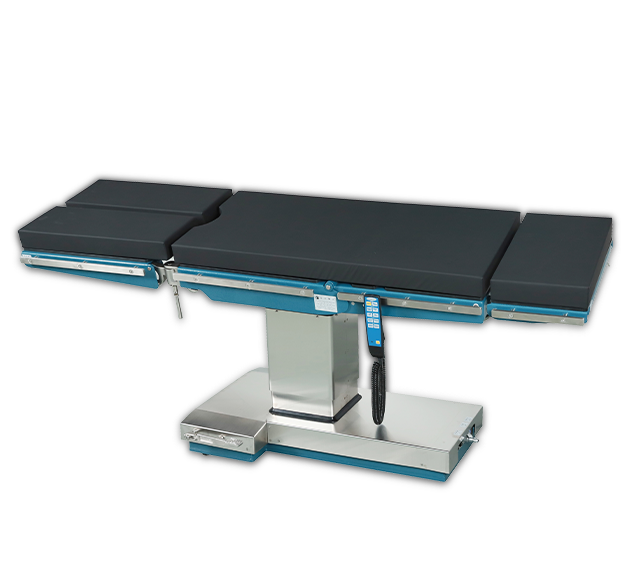

HE-608A is a multifunctional operating table developed by our factory. It adopts the most advanced microcomputer control and electro-hydraulic transmission technology. It can easily manipulate the various functions of the table. It has a super high load-bearing capacity of 350kg and can meet patients of various body types. The product is easy to operate. It has strong versatility, fine craftsmanship, and quality that has reached the international level.

Features

*Using microcomputer control, advanced electro-hydraulic transmission technology, replacing the traditional electric push rod technology, making the body position more accurate, and the running speed more uniform and stable.

*The hydraulic system adopts high-pressure hydraulic components, the overall bearing capacity reaches 350kg, the performance is more excellent, and it is durable.

*The head and leg plates are adjusted pneumatically, which is convenient for adjustment and more precise positioning.

*80mm double-layer memory foam mattress, which evenly distributes the patient's weight on the entire cushion, reduces the risk of bedsores during surgery, and the surface of the mattress is seamless, antibacterial and easy to clean.

*The table top frame is made of high-quality steel plate by bending, the base and the lifting column cover are made of 304 stainless steel plate, which is resistant to impact, damage and convenient for cleaning and disinfection.

*The base is T-shaped design, which provides more comfortable foot space for medical staff when standing.

* Base brake device: The bed can be firmly fixed by means of pedal operation. (Optional electric brake)

Parameter

Specification

Height Adjustment（mm） 700-1000 no include mattress height

Tabletop length（mm） 2000 /

tabletop wide （mm） 520 include side rail 580

Longitudinal Slide（°) 300 electric

Manual Adjutable of Built-in Kidney Bridge 0-120（mm） manual

Trendelenburg/Reverse Trendelenburg （°） 30/30 electric

Left/Right Tilt（°） 20/20 electric

Back Plate(Up/Down)（°） up ≥75, down ≥40 electric

Leg Plate(Up/Down)（°） up 50, down ≥90 pneumatic ,Removable

Outrach （°） ≥90

Head plate（°） up 50，down 90 pneumatic, detachable

Safe load (Kg) 350

Accessories

Standard accessories

Mattress 1set

Hand controller 1 piece

Waist support 2 pieces

shoulder support 2 pieces

Arm plate 2 pieces

Leg holder 2 pieces

Anesthesia screen frame 1piece

Clamp 2 pieces

Fixer 3 pieces
