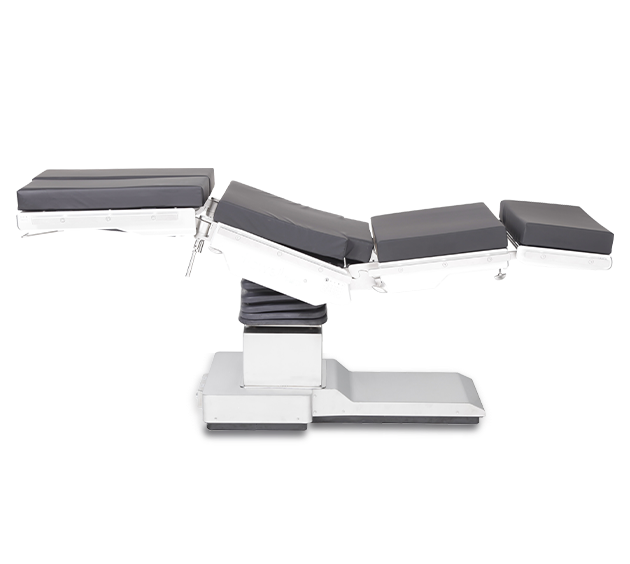

Applying the design concept of combining modern technology and humanization, incorporating modular design thinking, adopting a modular bed group, electro-hydraulic transmission technology, following the development trend of clinical surgery, not only meeting the current surgical imaging observation It also meets the requirements of modern cutting-edge surgery. The products are easy to operate, have strong versatility, have a wide range of applications, selected materials, fine craftsmanship, and the quality has reached the international level.

1. Advantages

*Using microcomputer control, advanced electro-hydraulic transmission technology, replacing the traditional electric push rod transmission technology, making the body position more accurate, and the running speed more uniform and stable;

*The main parts of the hydraulic system are all imported parts, the overall performance is more reliable and durable:

*New material memory foam mattress: The thickness of the mattress is 70mm. The best combination of 30mm memory foam and 40mm high-density foam can release the pressure of the patient's body and the bed surface caused by long-term surgery;

*Table top: made of carbon fiber material, low X-ray absorption coefficient and high-definition perspective imaging effect, greatly reducing the radiation damage of X-rays to patients and medical staff;

*High-precision imported linear guide rails ensure the stable operation of the operating table;

*The bed body is made of a combination of aluminum alloy and 304 stainless steel, which is beautiful, strong, resistant to impact, damage and corrosion, and is more portable;

*The bed structure is completely modularized. For different types of operations, you only need to match the corresponding action modules;

*Full carbon fiber surgical backplane, 360° full light transmission structure, up to 1200mm;

*The operating table is equipped with a battery and a charging device to ensure that when the AC power supply is interrupted, the operation can be automatically continued with the backup power supply. It will be charged automatically after the power cord is connected, and the power requirement is 220v 50Hz;

* Base brake device: electric operation, can firmly fix the bed; (optional manual)

*The T-shaped design of the base provides excellent foot space for the surgical team and a stable center of gravity. The height of the chassis is 95mm, which can be used with G-arm and X-ray machine. *The shell is made of high-quality 304 stainless steel;

*Double backboard design, in addition to the full carbon fiber and metal-free backboard, it is additionally equipped with a standard operating bed backboard and headboard to meet various surgical needs.

*The translation distance of 300mm, combined with the full carbon fiber backplane, achieves the full perspective effect of the operating table without dead ends.

Parameter:

With imaging board Normal table

Length(with imaging board)：2470mm

Width：520mm

Width(Include side rail)：580mm

Height adjustment:680mm-980mm

Trendelenburg/Reverse Trendelenburg:30°

Left/Right tilt ：20°

Back Plate(Up/Down) ：75°/40°

Foot Plate(Up/Down)：50°/90°

Foot plate outreach：90°

Length：2000mm

Width：520mm

Width(Include side rail)：580mm

Height adjustment:680mm-980mm

Trendelenburg/Reverse Trendelenburg:30°

Left/Right tilt ：20°

Back Plate(Up/Down)：75°/40°

Foot Plate(Up/Down)：50°/90°

Foot plate outreach：90°

Slide： 300mm

Head and leg board interchange: support

Standard Accessories

Memory sponge mattress 1 set

Hand controller 1 pc

Waist support 2 pcs

Shoulder support 2 pcs

Arm board 2 pcs

Leg holder 2 pcs

Anesthesia Screen 1 pc

Clamp 2 pcs

Fixer A 3 pcs

Imaging board 1 set

Back plate 1 set

Mobile cart 1 set
