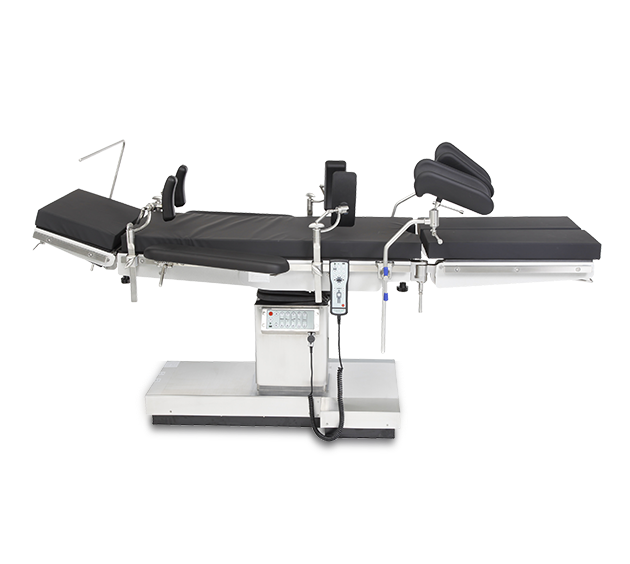

The design concept of the combination of modern technology and humanization is applied, microcomputer control and electric pusher transmission technology are used, the product is simple to operate, the position is precise, the material is controlled carefully, safe and reliable, the quality can match the international standard, fully meets the needs of surgery such as general surgery, heart, kidney, orthopedics, neurosurgery, gynecology, urology, etc.

一、The characteristics of the advantages.

*The use of electric pusher transmission technology, replacing the hydraulic transmission technology, no risk of hydraulic transmission oil leakage, uniform operating speed, stable, precise placement, reliable performance, durable.

*Equipped with one-key reset function, convenient for cleaning works after surgery, improve work efficiency.

*Multi-point position memory function, one-key recovery to the preset position and height, easy to operate and efficient.

*The base brake mode is electrically operated and can be secured to the bench.

*Electric built-in kidney bridge, easy to operate, no protruding mechanism under the bed, convenient for X-ray machine operation.

*T-shape base design, there is enough space for doctors to use, reduce the fatigue caused by doctors during the operation.

*Head and leg plate interchangeable design, according to the needs of surgery on the table flexible adjustment.

*Equipped with emergency power function, the operating table can be restored to its ideal position after an unexpected power outage.

二、Technical parameters

   Item       Parameters     Marks

Tabletop Height（mm） 680-980 Without mattress

Tabletop Length（mm） 2070 /

Tabletop Width（mm） With side rail 525 /

Slide in single direction（mm） 310 Electric control

Built-in kidney bridge （mm） 0-126 Electric control

Trendelenburg/Reverse trendelenburg （°） 31/31 Electric control

Left /right tilt（°） 21/21 Electric control

Back plate（°） up≥82，down≥32 Electric control

Leg plate （°） Up≥ 50，down≥93 Pneumatic

Leg plate horizontal（°） ≥95 Removable

Head plate（°） Up 50，down 93 Pneumatic,removable

三、Standard accessories

                     Standard accessories

Mattress 1set

Remote 1pc

Lateral support 2pcs

Shoulder support 2pcs

Arm plate 2pcs

Leg plate 2pcs

Anesthetic screen 1pc

Joint adapter 2pcs

Fixer 3pcs
