Product characteristics:

1.real cold light source

★ adopt new LED cold light source, energy saving, environmental protection and long service life up to 80,000 hours. The doctor's head heats up ﹤1℃.

★LED does not produce infrared and ultraviolet radiation, halogen-free shadow lamp caused by temperature rise and tissue damage, accelerate postoperative wound healing, and no radiation pollution.

★LED color temperature constant, color temperature color does not decay, soft and not dazzling, very close to the natural sun light.

2. outstanding shadowless effects

★ lamp head adopts the most scientific arc, built-in eight partition, die, multi-point light source design, spot adjustment is flexible, make spot illumination more uniform, when the surgical lamp is partially blocked, it can also achieve perfect shadowless effect.

★ lamp disc rotation radius :≥182 cm, lamp head can draw down the vertical ground, convenient for various angles of lighting.

3. excellent depth lighting

The ★ adopts computer-aided modular design, many LED light columns focus irradiation, produce more than 1200 mm of light column depth lighting, the center illumination up to 180000 lnx, and provide close to the natural sunlight of 3700 K-5000K toning temperature, True reflection of human tissue color, fully meet all kinds of surgical lighting needs.

4. advanced control systems

★ use LCD key control, can be power switch, illumination, color temperature adjustment, to meet the requirements of medical staff for different patients operating brightness.

★ digital memory function, automatic memory of the appropriate lighting, open again without debugging.

★ multiple multi-group and multi-channel centralized control methods with the same power to ensure that single LED damage does not affect the requirements of surgical lighting.

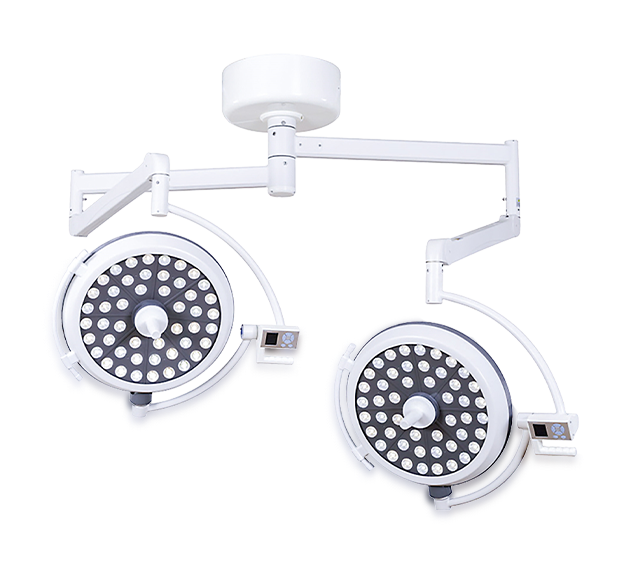

5. Universal Suspension System

★ rotating arm, a new alloy material is used to make octagonal shape.

★ balance system adopts imported arm spring assembly, the structure is light, easy to control, accurate positioning, can provide the maximum adjustment range.

   ★ has fatigue correction device and positioning handle adjustment device, easy to position adjustment after long time use.

6. Modern laminar flow lamp holder

★Circular ultra-thin design, the thickest part is no more than 10CM, and excellent laminar flow effect can be obtained.

★The lampshade shell is made of imported aluminum material, the middle handle of the lamp holder is detachable, and it is resistant to high temperature and high pressure disinfection at 134℃, which is convenient for adjustment and flexible positioning.

Technical parameters LED700 LED500

Illumination (adjustable) 40,000-180,000Lux 30,000-160,000Lux

Number of bulbs 80pcs 48pcs

Type of bulb LED LED

Average bulb life ≥80，000h ≥80，000h

Color temperature (adjustable) 3700K ～5000K 3700K ～5000K

CRI(adjustable) 85%～98% 85%～98%

Depth of focus 50-180cm 50-180cm

Spot diameter 160-280mm 160-280mm

Bright adjustment 1%-100% 1%-100%

Power consumption (W) 80 48

Head warmed up ﹤1℃ ﹤1℃

Voltage AC100-240V  50/60HZ AC100-240V  50/60HZ
