Description:

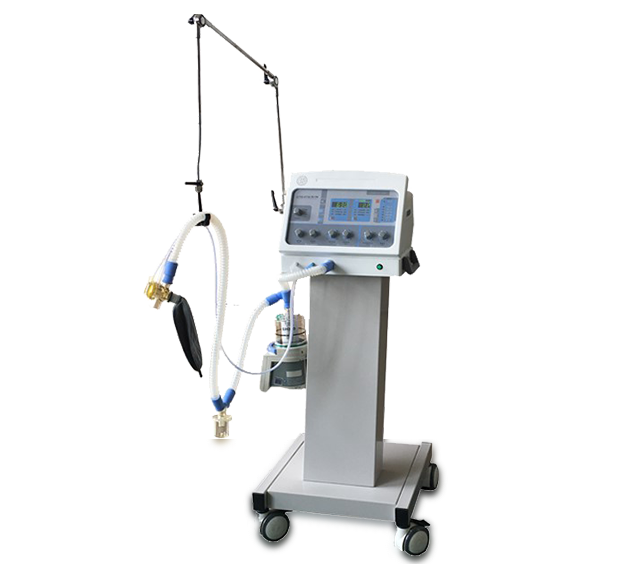

JIXI-H-100 can be used in ICU rooms, emergency

department, operating rooms and home.

It can be used for pediatric and adult patients.

Features:

Multiple functions, can be used for a variety

of occasions.

The main parts adopt good-quality components,

which are accurate and reliable.

Self-set alarm parameters and various alarm protection.

With inverse ratio ventilation, sigh and PEEP functions.

Environmental Requirements

Relative humidity:     15%~95%

Ambient temperature:  -18~ 50°C

Atmospheric pressure: 70~110kPa

Gas source: 0.28~0.6Mpa 60I/min

Power:          AC220V, 50 Hz

Classification

ClassⅠ, Type B—by protection against electric shock.

IPX4—by protection against harmful ingress of water, particulate matter.

It is suitable for the patient who weighs more than 15KG.

Configuration

Standard Configuration:

ventilator，pressure-reducing valve，high-pressure oxygen tube, lung simulator, breathing circuit, mask, head band, water trap, humidifier, support arms, PEEP valve.

Model JIXI-H-100

Modes CMV, CMV+SIGH, A/C, SIMV, MANUAL

Tidal Volume 50~1200mL

Respiratory Rate 5~60bpm

FiO2 40%~100%

Trigger -5~10hPa

Inspiratory Time 0.5~3S

Max Minute Volume ≥22L/min

PEEP 0，5 ~20hPa

Over Pressure Relief ≤ 72hPa

Package Dimension 580×580×1280mm

Weight 28kg(Including all the accessories)

Monitored Parameters: Tidal Volume

Airway Pressure

Alarm Set

MIN. Volume

Respiratory Rate

Trigger Level Alarms: High Airway Pressure Alarm

Low Airway Pressure Alarm

High MIN. Volume Alarm

Low MIN. Volume Alarm

High Rate Alarm

Apnea Alarm

Power Failure Alarm
