Description:

JIXI-H-100 can be used in ICU rooms, emergency

department, operating rooms and home.

It can be used for pediatric and adult patients.

Features:

Multiple functions, can be used for a variety

of occasions.

The main parts adopt good-quality components,

which are accurate and reliable.

Self-set alarm parameters and various alarm protection.

With inverse ratio ventilation, sigh and PEEP functions.

Environmental Requirements

Relative humidity:     15%~95%

Ambient temperature:  -18~ 50°C

Atmospheric pressure: 70~110kPa

Gas source: 0.28~0.6Mpa 60I/min

Power:          AC220V, 50 Hz

Description:

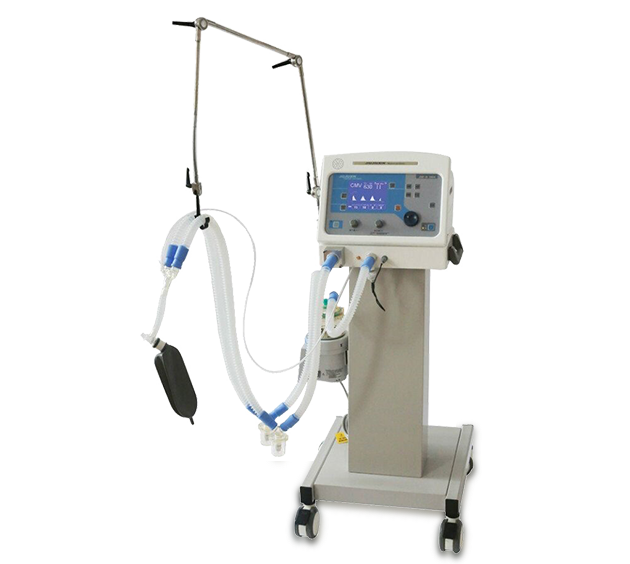

JIXI-H-100A can be used in ICU rooms, emergency department, operating rooms and home.

It can be used for pediatric and adult patients.

Features:

Multiple functions, can be used for a variety of occasions.

The main parts adopt good-quality components.

which are accurate and reliable.

With special self-test function.

Rechargeable build-in Li-battery can be used for at least 8 hours.

5.7’ LCD display, JogDial operation, simple and intuitive.

Environmental Requirements

Relative humidity:     15%~95%

Ambient temperature:  -18~ 50°C

Atmospheric pressure: 70~110kPa

Gas source: 0.28~0.6Mpa 60I/min

Power:          AC220V, 50 Hz

Li-battery: 2200mAH, rechargeable

Classification

ClassⅠ, Type B—by protection against electric shock.

IPX4—by protection against harmful ingress of water, particulate matter.

It is suitable for the patient who weighs more than 15KG.

Configuration

Standard Configuration:

ventilator，pressure-reducing valve，high-pressure oxygen tube, lung simulator, breathing circuit, mask, head band, water trap, humidifier, support arms, FIO2 sensor

Model JIXI-H-100A

Modes CMV, A/C, SIMV, MANUAL

Tidal Volume 50~2000mL

Respiratory Rate 1~100bpm

FiO2 40%~100%

Trigger OFF,-19~19hPa

Inspiratory Time 0.3~6S

PIP 0~60hPa

PEEP 0，5 ~20hPa

Max Minute Volume ≥22L/min

Sigh 0~10 per 100 breath

Over Pressure Relief ≤ 72hPa

Package Dimension 580×580×1280mm

Weight 28kg(Including all the accessories)

Monitored Parameters: Tidal Volume

Minute Ventilation Volume

Respiratory Rate

PEEP

Airway Pressure

Pressure-Time Wave Form

Oxygen Concentration

Trigger Level Alarms: High Airway Pressure Alarm

Low Airway Pressure Alarm

High MIN. Volume Alarm

Low MIN. Volume Alarm

High Frequency Alarm

Apnea Alarm

Power Failure Alarm

Low Battery

Low Oxygen Source
