Description:

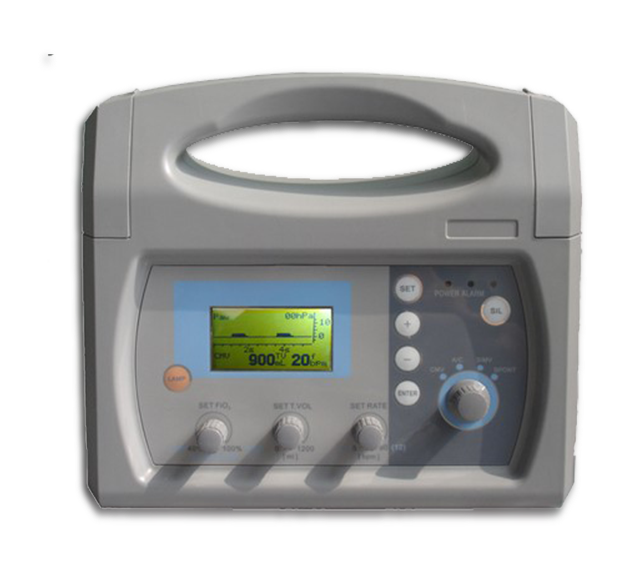

JIXI-H-100C is used for first-aid, ambulances,

emergency situation and patients’ transport

in hospital.

It can be used for pediatric and adult patients.

Features:

Multiple functions, compact design, easy to

take, designed for transport and first aid.

The main parts adopt good-quality

components, which are accurate and reliable.

LCD screen, simple and intuitive operation.

Three kinds of power sources: AC, DC and

internal battery.

Environmental Requirements

Relative humidity:     15%~95%

Ambient temperature:  -18~ 50°C

Atmospheric pressure: 70~110kPa

Gas source: 0.28~0.6Mpa 60L/min

Power: AC100V-240V or DC12V

Li-battery: 2200mAH, rechargeable

Model JIXI-H-100C

Modes CMV, A/C, SIMV, SPONT

Tidal Volume 50~1200ml

Respiratory Rate 5~60bpm,1-12 bpm for SIMV

FiO2 40%~100%

Trigger -10~0hPa

Max Minute Volume ≥22L/min

PEEP 0, 5 ~20hPa

PIP 0~60hPa

Over Pressure Relief ≤ 72hPa

Sigh 0~10 per 100 breath

Base Flow 0~5 L/min

Package Dimension 520*520*270mm

Weight 11kg(Including all the accessories)

Monitored Parameters: Tidal Volume

Sigh

Respiratory Rate

Peak Airway Pressure

Trigger

Airway Pressure

Airway Pressure Wave Form Alarms: High Airway Pressure Alarm

Low Airway Pressure Alarm

High respiratory rate alarm

Low Battery Alarm
