Description:

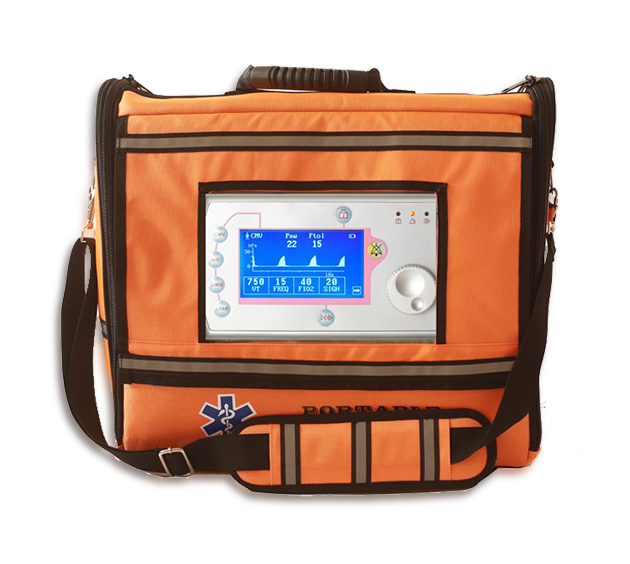

JOGGER is used for first-aid, ambulances, emergency situation and patients’ transport

in hospital.

It can be used for pediatric and adult patients.

Features:

Multiple functions, compact design, easy to

take, design for transport and first aid.

The main parts adopt good-quality components, which are accurate and reliable.

Special self-test function.

Large LCD screen, JogDial operation, simple and intuitive.

Three kinds of power sources: AC, DC and internal battery.

Environmental Requirements

Relative humidity:     15%~95%

Ambient temperature:  -18~ 50°C

Atmospheric pressure: 70~110kPa

Gas source:        0.28~0.6MPa

Power:  AC100V-240V or DC12V

Li-battery: 2200mAh, rechargeable

Classification

ClassⅠ, Type B — by protection against electric shock.

IPX4 — by protection against harmful ingress of water, particulate matter.

It is suitable for the patient who weighs more than 15kg.

Configuration

Standard Configuration:

ventilator, pressure-reducing valve, high-pressure oxygen tube, PEEP, lung simulator, breathing circuit, mask, head band, power adapter, carrying bag, 2L Aluminum oxygen cylinder, oxygen bridge, hanging rack.

Model JOGGER

Modes CMV, A/C, SIMV, CPAP

Tidal Volume 50~2000ml

Respiratory Rate 1~100bpm

FiO2 40%~100%

Trigger -20~19hPa

Peak pressure 0~60 hPa

Max Minute Volume ≥22L/min

PEEP 0，5~20hPa Adjustable

PIP 0~60hPa

Over Pressure Relief ≤ 72hPa

Sigh 0~10 per 100 breath

Package Dimension 520*520*270mm

Weight 12kg(including all the accessories)

Monitored Parameters: Tidal Volume

Oxygen Concentration

Sigh

Respiratory Rate

Trigger

CPAP pressure

Peak Airway Pressure

Time Pressure Wave Form Alarms: High Airway Pressure

Low Airway Pressure

High respiratory rate alarm

Low Battery

Low Oxygen Source
