Description:

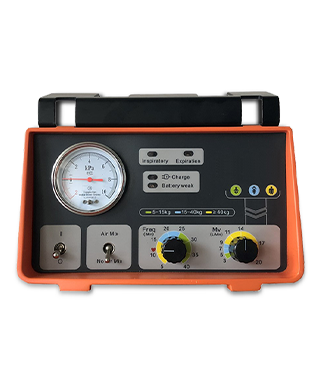

JX10 PLUS can be used for first-aid, ambulances, emergency treatment and patients’ transport

in hospital.

It can be used for pediatric and adult patients.

Features:

Multiple functions, easy to take.

The main parts adopt good-quality components, accurate and reliable.

Safety protection function.

Standards of Usage Environment

Relative humidity:      15%~95%

Ambient temperature:  -18~ +50°C

Atmospheric pressure:  70~110kPa

Gas source: 0.28~0.6MPa (pressure)

Medical Oxygen

Power:           AC100V-240V

Li-battery: 2200mAh, rechargeable

Model JX10 PLUS

Mode CMV

Minute Volume 3~20L/min

Respiratory Rate 5~40bpm

Over Pressure Relief ≤72hPa

FiO2 Air Mix, No Air Mix

Working Time of Internal Li-battery ＞8hours

Indicators Inspiration, Exhalation, Low Battery Voltage, Charge, Airway Pressure

Ventilator Dimension 220×220×170mm

Product Features

1. Real time airway pressure indication;

2. Simple function, easy to operate, especially for first aid;

3. Volume controlled method, used for adults and children over 5kg;

4. Minute ventilation indication, setting parameters conveniently and quickly;

5. Oxygen concentration have two settings: Air Mix/No Air Mix; Saving more oxygen;

6. Yellow, blue and green, the three-color blocks distinguish parameter ranges for suitable crowd;

7. Equipped with multifunctional handle, convenient for ventilators to be fixed on various stretchers and sickbeds;

Classification

Class I, Type B—by protection against electric shock.

IPX4—by protection against harmful ingress of water, particulate matter.

Configuration

Standard Configuration:

Ventilator, multifunctional handle, lung simulator, adaptor, headband, pressure-reducing valve (optional British/national standards), high pressure tubes, breathing circuits, mask.

Optional: PEEP
