Description:

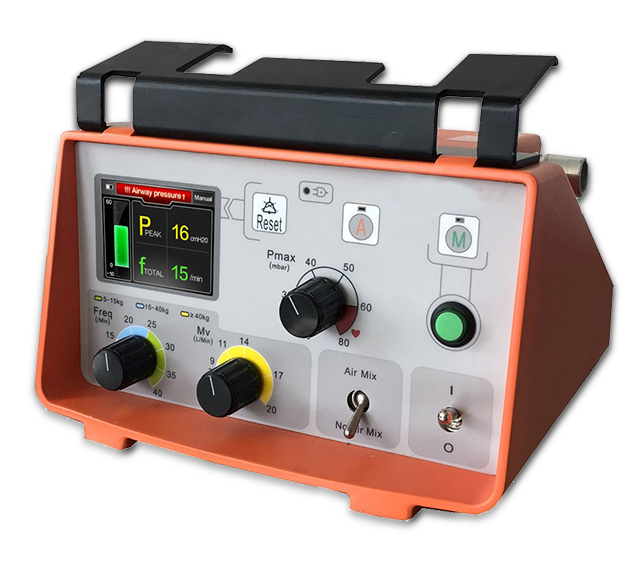

JX20 can be used for first-aid, ambulances, emergency treatment and patients’ transport

in hospital.

It can be used for pediatric and adult patients.

Features:

Multiple functions, easy to take.

The main parts adopt good-quality components, accurate and reliable.

Safety protection function.

Standards of Usage Environment

Relative humidity:      15%~95%

Ambient temperature:  -18~ +50°C

Atmospheric pressure:  70~110kPa

Gas source: 0.28~0.6MPa (pressure)

Medical Oxygen

Power:           AC100V-240V

Li-battery: 2200mAh, rechargeable

Model JX20

Modes CMV, A/C, MANUAL, CPR

PEEP 0, 5~20hPa

Minute Volume 3~20L/min

Respiratory Rate 5~40bpm

FiO2 Air Mix, No Air Mix

Over Pressure Relief ≤72hPa

Working Time of Internal Li-battery ＞8hours

Ventilator Dimension 220×220×170mm

Indicators: Total Respiratory Rate

Peak Airway Pressure

Charge

Pressure Dynamic Display Alarms: High Airway Pressure Alarm

Low Airway Pressure Alarm

Low Battery Voltage Alarm

Product Features

1. It can be used for adults and children over 5kg;

2. Simple function, easy to operate, especially for first-aid;

3. Minute ventilation indication, setting parameters conveniently and quickly;

4. Oxygen concentration have two settings: Air Mix/No Air Mix; Saving more oxygen;

5. 2.8’ HD color LCD, and it can monitor the pressure and respiratory rate in real-time;

6. Yellow, blue and green, the three-color blocks distinguish parameter ranges for suitable crowd;

7. Equipped with multifunctional handle, convenient for ventilators to be fixed on various stretchers and sickbeds;

Classification

Model                                                JX20

Class I, Type B—by protection against electric shock.

IPX4—by protection against harmful ingress of water, particulate matter.

Configuration

Standard Configuration:

Ventilator, multifunctional handle, lung simulator, adaptor, headband, pressure-reducing valve (optional British/national standards), high pressure tubes, breathing circuits, mask, PEEP.
