Profile

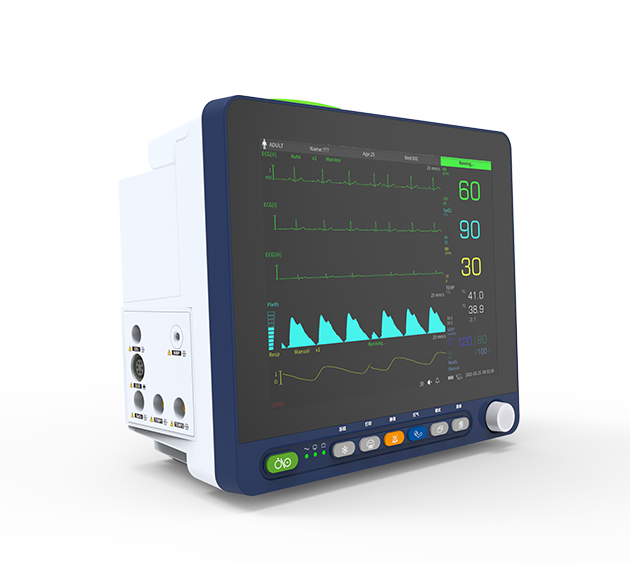

The UM2012 Patient Monitor is a monitor that breaks the shape of the traditional monitor. The unique inclined panel design makes the angle of the buttons and the screen more in line with the angle of human observation, which is a kind of humanized design. It may be used in the hospital, clinical environment, homecare. The rounded chamfer design makes it full of sense of science and technology.

Features

■ Tilted 12.1 inch LCD high definition display.

■ Equipped with accessory box,  save more space.

■ The rounded chamfer design with a sense of technology.

■ Connect with the central monitoring system for remote and wireless monitoring.

■ Large capacity storage, with power failure protection.

■ The integrated module design ensures the safety, reliability and stability of monitor.

■ 5 display modes: large character, OxyCRG Display Mode, trend table data and other multiple interfaces.

■ The dexterous handle makes it convenient for medical staff to carry.

Specifications

Enclosure

Weight 4.6kg(10.69lb)

Dimensions 178mmWx285mmHx310mmD (12.76in.Wx11.2in.Hx12.2in.D)

Display

Screen size 12.1 inch diagonal high-resolution

Screen type TFT (Thin Film Transistor) Active Matrix LCD

Resolution 1024 X 768 pixels.

Alarms

Categories Patient status and system status

Priorities Low,medium,and high

Notification Audible and visual

Setting Fullstorage,low battery and sensor off

Alarm volume

level 45 to 85 decibels

Alarm system

delay <10 seconds

SpO2

Measurement

range 0 to 100% Functional Saturation

Accuracy 70-100%，±2%; <70% unspecified

Resolution 1%

Display wave

speed 10.00 mm/sec

Pulse Rate

PR range 20 to 350 bpm

Accuracy ± 2 bpm or ± 2% (whichever is greater)

Resolution 1bpm

ECG

HR range 20 to 350 bpm

Accuracy ±2 bpm or ±2% (whichever is greater)

Resolution 1bpm

Leads I, II, III, V, aVR, aVL, or aVF (5-lead)

Display gain X 1/4, X1/2, X1, X2, X4

Display sweep speed 6.25, 12.5, 25, 50mm/sec

NIBP

Method Oscillometric with step-down deflation

Measurement Range 0-300mmHg

Accuracy Algorithm based on human algorithm that meets or exceeds accuracy requirements of ANSI / AAMI SP10:1992 and 2002

standards for non-invasive blood pressure using the oscillometric method.

Measurement Time 30 to 50 seconds typical,

120 seconds maximum

AUTO Interval

Time 2, 3, 5, 10, or 30 minutes,

or 1, 2 hours 20-260 (in 1 mmHg steps), and OFF

RESP

Measurement

range 0 to 120 breaths per minute (rpm)

Accuracy ±1 rpm

Resolution 1rpm

TEMP

Measurement

range 0 to 50℃ / 32 to 122 °F

Accuracy ± 0.2℃ plus the temperature sensor tolerance

Resolution 0.1℃

ETCO2 (Optional)

Mode Sidestream or Mainstream

Measurement Range 0-150mmHg

Accuracy 0-40mmHg: ±2mmHg

41-150mmHg: ±10% of reading

Resolution 0.1mmHg

Flow rate 50ml/min±10ml/min

Electrical

Battery Lithium battery with 4,400mAh will typically provide

8 hours of monitoring with no external communication, no audible alarm sound, and at an ambient temperature of 25℃

Type Lithium Battery, 4,400mAh, DC 11.1V

Voltage AC 100-240V, 50-60Hz, SOVA

Environmental

Transport  and  Storage Operating Conditions

Temperature （- 40 ～ + 75）℃

（- 40～ + 167）℉ （0 ～ + 50）℃

（+ 32 ～ + 122）℉

Altitude -500 to 5，000m （1640 to 16404 ft.）

Relative humidity 15% to 95%x non condensing

Configuration

Standard SpO2+ECG+NIBP+RESP+TEMP

Optional Sidestream / Mainstream ETCO2 Module, Trolley, Brace, IPMS8600 Central monitoring system, Recorder, Touch screen.

Trend

Memory Saves a total of 120 hours of data events; saves date and time, alarm conditions, measurements

Tabular format One table for all parameters
