The latest generation of Anesthesia Depth Multi-Parameter Monitor. It has the depth of Anesthesia index, analgesia index, myoelectric index, and six vital signs parameters(ECG, blood pressure, respiration, body temperature, SpO2, pulse rate), which is a ture multi-parameter monitor for the anesthesia depth.

12.1’’ TFT color LCD large screen display

Main oarts are imported with original packaging, the machine quality is stable, and multiple languages are available

Accurate monitoring can also be performed in the case of combined application of muscle relaxants and analgesics.

High EEG sampling rate, high accuracy and safety

Accurate monitoring even under compound anesthesia

Strong anti-interference, can work under high frequency surgical unit

Bluetooth transmission function can be connected to a tablet computer and Android mobile phone

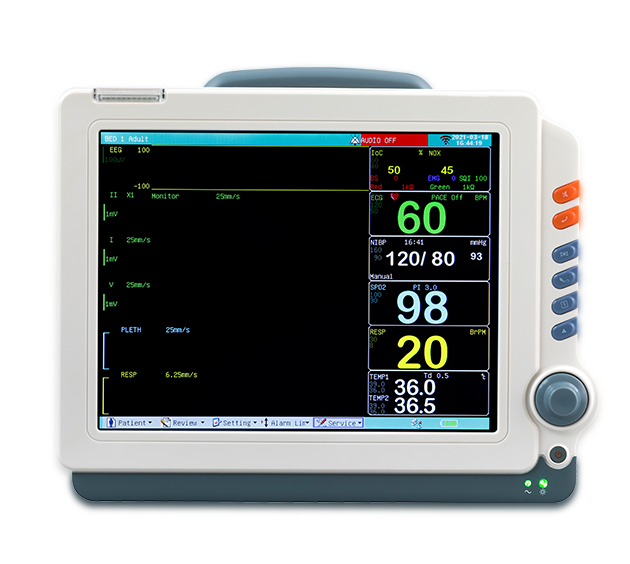

OSEN8000D

Anesthesia Depth Multi-Parameter Monitor

Exclusive Agency

OSEN8000D

Anesthesia Depth Multi-Parameter Monitor

The Anesthesia Depth multi-Parameter Monitor obtains accurate anesthesia depth index and analgesia index only through fuzzy logic inference calculation of EEG signals, helping doctors and nurses to manage anesthesia more accurately, objectively evaluate the safety of the surgery for patient and the suitability of the anesthesia level, reduce the risk of operation. This can save operation time cost, and shorten the postoperative recovery period-beneficial to patients, medical staff, and hospitals.

Features

Display the depth of anesthesia index, analgesia index, burst suppression ratio, EMG signal, EEG on the same screen;

Display the depth of anesthesia index and analgesia index 2-6seconds after connecting the sensor, real-time monitoring;

With high-resistance to high frequency surgical unit, fast signal reset;

Large data storage capacity, at least 2000 hours, export data and trend graphs, print reports in PDF format

12.1’’ color, high brightness, wide viewing angle LCD(TFT)

Suitable for monitoring of adults, pediatric and newborns;

Sedation sensor

The sampling rate of 2000 times per second ensures real-time performance

The signal transmission is designed withour amplifier to eliminate the influence of signal amplification distortion on index calculation;

Professional medical scrub for degreasing, simple and convenient humanized improvement;

Depth of Anesthesia Index

Using EEG, BS%, and EMG as the basic data for the input of the adaptive neuro-fuzzy inference system, it’s advantage is that it will not design a potential original mathematical function to control the accidental connetion between EEG and the patient’s clinical state, so as to reflect the patient’s level of consciousness more accurate and timelier, and have a strong follow-up

Clinical Significance of Depth of Anesthesia Index

The depth of anesthesia index uses numbers 0-100 to indicate the depth of clinical anesthesia. The smaller the number, the higher the degree of anesthetic.

Depth of Anesthesia Index Clinical State

90-100 Awake

80-90 Drowsiness

60-80 Mild anesthesia

40-60 Anesthesia depth range suitable for surgery

10-40 Deep anesthesia, with burst suppression ratio (BS%) in most cases

0-10 Close to deep coma, when the depth of anesthesia index (3,BS%) is 75, EEG is basically equipotential

Analgesia Index

The analgesia index is derived from the Q in Quantum and the nox in the noxious Stimulus alphabet.

It is used during general anesthesia and sedation and is related to the probability of responding to noxious stimuli. The higher the index, the higher the probability that the patient will respond to harmful stimuli.

Clinical significance of Analgesia Index

The analgesia index uses the number 0-100 to indicate the depth of clinical analgesia, the higher the probability of the patient’s response to harmful stimuli.

Analgesia Index Clinical State

80-99 The patient is prone to projections of harmful stimuli, with pain or allergies

65-80 Mild anesthesia

35-65 The probability of response to harmful stimuli is low, and this range is sufficient for surgical operations

20-35 Very low probability of reaction to harmful stimuli

0-20 Overdose of analgesics

BS%: Burst Suppression Ratio

When the EEG is equipotential or the wave forms a “flat” line, it displays the Burst Suppression Ratio of the EEG signal in the past 30 seconds in the form of a percentage. The number of Burst Suppression, variability and EEG power directly reflect the patient changes in intracranial pressure.

EMG(Electromyography Signal)

Shows that the myoelectric energy level is between 35-45HZ bandwidth(logarithm of 0-100), indicating the patient’s muscle relaxation state.
