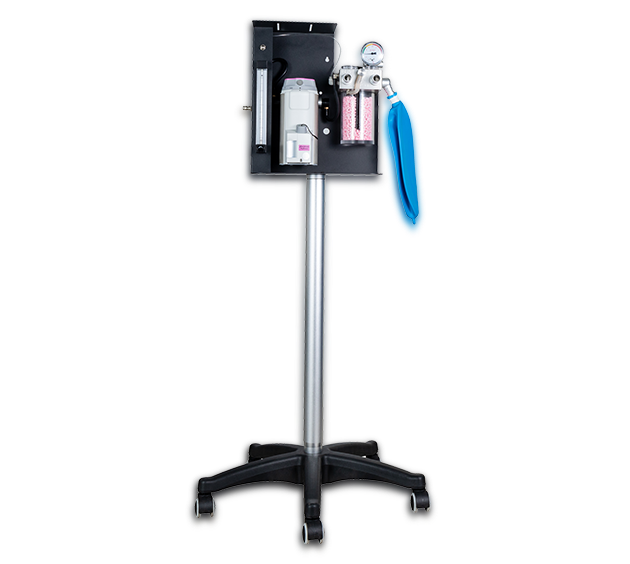

compact light weight and portable, Suitable,

Specially designed for surgical locations where Space is limited, Such as:

Office based Anesthesia(OBA);

Dental anesthesia; Remote locations, Outside Hospital O.R, Disaster scenes and mass casualty incidents,Front-line military hospitals,Shipboard, Aircraft.

Feature:

1. Compact light-weight and portable, could be transported by pullrod case, put on table and assembly on the trolley.

2. Jackson or Bains Absorber is available

3. Specifically designed to accomodate low flow

4. Selectatec-bar and quick change vaporizer mounting device

5.Professional airtight breathing circuit design, provide the stable gas anesthesia, save anesthesia gas consumption, to ensure a clean operating room and laboratory environment.

6. External and reusable soda lime canister, easily watch and replace soda lime.

7. With Oxygen flush function to ensure that clinical Anesthesia demand and Oxygen supply

demand.

8.With APL pressure reducing valve to prevent pressure to hurt the animal, ensure the animal safety .

9. Wastewater discharge system

10. Visible inspiration and expiration valve

11. Could upgrade to Oxygen&N2O or Oxygen&Air flow meter freely

12.Module rack with polyester medical material with superior spray technology, high strength and light weight.

13. With transport case, convenient to take and transport

14.Easy to disassemble and assemble all the components, convenient for clean and maintenance.

Specification:

Application: Adult and pediatric( 3kg over)

Ventilation mode: Closed, half-closed, half-open

Tidal volume( Manual Mode): 10~2000ml

Gas pressure: 0.25~0.65Mpa

Flow meter: Oxygen two tube: one tube:0.1~1,one tube:1~10L/M

APL valve: 0.5~6.0Kpa

OXYGEN Flush: 25~75L/min

I:E: As the doctor operation

BPM: As the doctor operation

Monitoring: Airway pressure, respiratory mode.

Three gauges: One for Oxygen source pressure

One for oxygen working pressure

One for airway pressure

Vaporizer

With the latest innovative design of delivery system, vaporizers deliver accurate concentration under varying conditions of variable flow rate, pressure, temperature and so on.

Stably deliver agent, automatic temperature-compensating, deliver accurate agent

Sophisticated delivery system,Stable, prompt, accurate

Various kinds of mounting types.

Safety lock device to prevent the anesthetic gas volatile accidentally.

The big view window is convenient to observe drug usage levels.

Flow range:0.2 to 15L/min

0.2 to 10L/min(normal usage)for concentrations>5 vol%

Filling volume for agent:

About 340ml with dry wick

About 300 ml with moist wick

Mounting type:

Selectatech Compatible

Draeger plug in

Cage Mount (ISO 23mm Tapers)

Cage Mount with Interlock

Net Weight: 26kg

Gross Weight: 30kg

Size:86 X51 X 38CM
