Betterlife  Vitavue Series

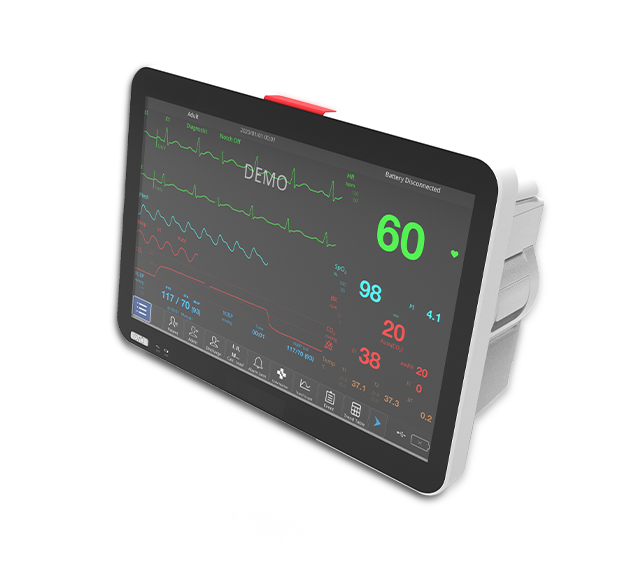

Patient Monitor  Vitavue12

Together, we make life better

360 Degrees Alarm Light

Full brightness display from angles

Rechargeable Lithium Battery

Support continuous working of 2 hours

(2600mAh), 4 hours(5200mAh)*

lnstant Upgrades and Maintenance

Optimized structural design for USB/HDMI ports

For quick and easy data transfer, software upgrade, screen sharing, and nurse call station connections

Wide range of mounting solutions

Wall mount/bedside/rolling stand for any type of transportation

Compact Design

With an integral carry-handle

Modern, thin, light weight and portable

Color TFT Display 12.1"

1280X800mm high resolution

170 degrees wide angle view

Anti-glare and flicker free technology with 10 levels of night modes

Deliver the best visual experience

Sweep speed 6.25,12.5,25,50 mm/sec

Powerful Data Storage

480 hours full-disclosure review

168 hours of tabular and graphic trends

4000 sets of data

100+ alarm events

Code marker function to locate specific

Clinical data for enhanced decision making

Hassle Free Touch Screen

Seamless all-screen design

Easy to clean, water and dust proof

Access all functions intuitively in just one touch

Easy to operate with local language menu

WIFI with smart IT solutions

Wireless integration with Central Monitoring Station

Dynamic trends provide up to 240 hours of useful information for review

8 traces per monitor and 16 monitors on one screen

View up to 32 maximum bed on one platform in real-time

Review and manage patient data anytime and anywhere in and pre-hospital

Additional Features

SpO2 Algorithm

Outstanding motion resistance and interference resistance performance.

Real time perfusion index and low perfusion detection.

3/5/12 Leads ECG

Optimized for arrhythmia detection, pacemaker detection,

and HR measurement.

3 kinds of filtering mode: diagnosis, monitoring and operation.

Arrhythmia analysis (ST segment included)

Asystole.Pause.VFIB/VTAC ... 23 arrhythmias can be analyzed

Main-stream and Side-stream EtCO2

World class main-stream and side-stream EtCO2 technology.

especially accurate for micro-stream situation, and up to 150 RPM

detection for patients with weak respiration and high respiratory rate.

NIBP Module

Designed for cardiac patients, hypertensive patients, and neonatal patients.

Dual CPU and overpressure protection.

Provides 10 automatic measurement timel pre-inflation pressure settings.

Supports air leakage detection, pressure calibration and pressure zero function.

10.1’’ display with control knob Optional for touch screen

12.1’’ touch screen

Advanced technology for cost effective monitoring

Optional Advanced Parameters

Cost effective add-ons such as EtCO2, IBP, Anesthesia Gas/O2.SpO2 Masimo/NIBP Suntech technology available.

Configurable Interface

Host up to 8 traces

Modules can be set up simply by clicking on the data segment.

Maximize the efficiency of clinicians.

Customizable hot keys to conveniently access frequently used functions.

Specifications

Physical specifications

vitavue 10 Dimensions: 278(W)x190(H)x120(D) mmNet weight 2.5KG

Vitavue 12 Dimensions:[295(W)x210(H)x126(D) mm)Net weight 3.5KG

Power Supply

External power: 100-240V AC,1.4A,50-60Hzlnternal battery:

Rechargeable Li-on Battery2600 mAh, 2 hours working5200 mAh*,2 hours working Recorder*

Print our parameters and 3 selectable waveformsPaper width: 48mm

Print type: real-time, alarm, freeze, review, calculation, trendPrint speed: 12.5mm/s, 25mm/s,50mm/s

Data Storage

Graphic & tabular storage and review:168 hoursNIBP record storage and review: 4000 sets

NIBP

Method: Oscillometric

Mode: manual,auto,STAT

Pulse rate range: 40-240 bpm

Measuring range:

Adult mode

:SYS 40-255 mmHg· DIA 10-215 mmHg-MEAN 20-235 mmHg

Pediatric mode

. SYS 40-200 mmHg-DIA10-150 mmHg-MEAN 20-165 mmHg

Neonatal mode

-SYS 40-135 mmHg-DIA10-100 mmHg- MEAN 20-110 mmHg

Resolution: 1 mmHg

Precision:

Max average error: ±5 mmHg

Max standard error: 8 mmHg

Overpressure protection:-

Adult 290 mmHg

Child 247 mmHg-

Newborn 145 mmHg

NIBP (Suntech)*

Method: Oscillometric

Mode: manual, auto, STAT

Pulse rate range: 40-220 bpm

Measuring range:

Adult mode

:SYS 40-260 mmHg-

DIA 20-200 mmHg:

MEAN 26-220 mmHg

Pediatric mode

-SYS 40-160 mmHg

DIA 20-120 mmHg-

MEAN 26-133 mmHg

Neonatal mode

- SYS 40-130 mmHg:

DIA 16-110 mmHg+

MEAN 20-100 mmHg

Resolution: 1 mmHg

Precision:

Pulse rate accuracy: ±2% or ±3 bpm, whichever is greater

Transducer accuracy t3 mmHg over full range in operating condition

Overpressure protection: Yes

Spo2

Measuring range:0-100%

Resolution: 1%

Precision:

Adult/pediatric: 70%-100%±2%

Neonatal: 70%-100%±2%

Pulse rate:

Measuring range: 25-300 bpm

Resolution: 1 bpm

Accuracy: The bigger one between±2% or ±2bpm

Perfusion index: Measuring range: 0.1-20%

Resolution:

0.1%-9.99%,0.01%;10.0%-20.0%,0.1%

SpO2 (Masimo)*

Measuring range: 0-100%Resolution: 1%

Precision:

Adult/pediatric: 70%-100%王2%

Neonatal: 70%-100%±3%Pulse rate:

Measuring range: 25-300 bpm

Resolution: 1 bpm

Accuracy:The bigger one between ±2% or 2 bpm

ECG

Leads: 3/5/12*,AHA/IEC

Sensitivity: 1.25,2.5,5.10,20,40mm/mv

Accuracy. ±5%

Sweep rate: 6.25,12.5,25,50mm/sRange of heart rate monitoring:

Adult: 15-300 bpm

Neonatal/pediatric: 15-350 bpm

RESP

Method: the thorax impedance method (used with ECG leads)

PR measurement range:

Adult: 0-120 rpm

Pediatric/neonatal:0-150 rpm

Resolution: 1 rpm

Precision: The bigger one between ±2 rpm or ±2%(6-150 rpm)Temperature

Channel: 2

Method: thermal

Measuring and alarm range: 15-50°CResolution:0.1°℃

Accuracy ±0.1℃ (not including sensor)Refresh time: 1-2 s

Temperature calibration: interval of 5 to 10 minutes

EtCO2 (BLMED mainstream or sidestream)*

Sample rate: 50±10ml/min (sidestream)

Measuring range:

-CO2: 0-99 mmHg-AwRR:0-150 brpm

Resolution:

-cO2: 1 mmHg-AwRR: 1 brpm

Accuracy:

- CO2:± (2 mmHg+2% of readings)

AwRR:

·±1 brpm (0-70 brpm)·±2 brpm (71-120 brpm)·±3 brpm (121-150 brpm)

EtCO2 (Masimo mainstream or sidestream)*

Co2 range(IRMA):0-99 mmHg

Accuracy: ± (0.2 vol%+2% of readings)

Rise time: RMA CO2 -90 ms

System response time:

- IRMA CO2<1 sec

- ISA CO2 < 3 sec

Breath detect: Adaptive threshold minimum 1 vol% CO2 change

Respiratory rate: 0-150 bpm 1bpm

IBP*

Channel: 2

Measuring range:

-ART 0-300 mmHg-PA -6-120 mmHg

- CvP -10-40 mmHg-RAP-10-40 mmHg

-LAP -10-40 mmHg-ICP-10-40 mmHg

-P1-P2-50-300 mmHg

Resolution:1 mmHg

Precision: the bigger one between t2rpm or±2%(6-150 rpm)Pulse rate:

Measuring range: 25-250 bpm

Resolution: 1 bpm

Accuracy: the bigger one between ±3 % and ±3 bpmC.O.*

Tb

Measuring range: 23.0-45.0CResolution: 0.1℃

Accuracy:±0.5CTi

Measuring range:-1.0~27.0°℃

Resolution:0.1℃

Accuracy: ±0.5"Cco

Measuring range: 0.20-20.00 L/min

Resolution: 0.01 L/min

Accuracy:±5%

Anesthesia gas/o2* (Masimo)

Technology: Infra-red absorption characteristic

Paramagnetic oxygen: optional

Gas:Co2, O2,N2O,DES, ISO, ENF. HAL,SEV

Warm-up time accuracy mode: 20 s

full accuracy mode: 60 s

Sample flow rate: 50士10 ml/min

Measuring range:

-CO2:0-15%-

N20: 1-100%

-HAL/SO/ENF:0-8%-

SEV: 0-10%

-DES:0-22%-02:0-100%

Respiratory rate: 0-150 bpm 1bmp

MAC value displayed

Network connection

LAN Ethernet / WiFi*

I/O interface

Nurse call port

USB interfaces

HDMl extended interface*

Remark: the items marked by“*”are optional
