BAIX

Low Temperature Plasma Sterilizer

PS series Plasma Sterilizer & Consumables

The first manufacturer in the world to apply Android system to plasma sterilizer, which

indicates that infection control equipment break into informational and intelligent age.

The first manufacturer in the world to apply fingerprint identification to plasma sterilizer,

which is easier and faster for operators to enter the interface, and increases the

traceability.

The first plasma sterilizer in the world to be equipped with cloud service realizes the

real-time monitoring anytime and anywhere.

The first plasma sterilizer in the world to have the function of text message notification

informs the operator of running status, the sterilization start and finish time, equipment

fault and maintenance, etc.

The first and only one in the world to play training video, update online industrial news,

infection control knowledge, and user manual.

Cerificates

ISO9001

ISO13485

CE

FSC

Parts of patents

Product Features

Smart Operating System

The equipment is applied with Android operating system, which can realize the real-time monitoring of machine. The sterilization record can be delivered to traceability system by wire or wireless connector. In this way, the machine is monitored real time..

Finger Print Identification

Customers can enter operation interface by finger print ID or password. By using finger print ID technology, it can prevent wrongly operation and trace the responsibility of operators.

Video Training

Customers can receive operation training and infection control knowledge, etc. from the machine.

Text Message Notification

The equipment operating staff can get the information about running status of machine by text message. (including running information and fault information)

Various Access to Network

Provide RJ 45 wire connector, WIFI module and 3G network module.

“Cloud” Service

After connection with network, the equipment can backup the date into “cloud” on Internet. Once there is any fault, the machine, after repaired, can synchronize data from “cloud”.

Any operators who are authorized can monitor the running of machine anytime and anywhere. Main functions of “Cloud”: cloud backup, cloud recovery, cloud curve.

Online Service

Provide the latest news in medical field; Launch the latest equipment information; Update the newest industry knowledge; Provide operating manual and maintenance knowledge. Online service is available anytime.

H2O2 Injection System

H2O2 injection system guarantees the leakproof and increase and prolongs using life of hydrogen peroxide.

Excel File Export

Sterilization data can be exported as excel file so that the record is available for all staff.

Leybold Vacuum Pump

Leybold vacuum pump from Germany guarantees the vacuum effect, decrease the time of vacuumizing.

It owns strong property of corrosion resistance and long using life.

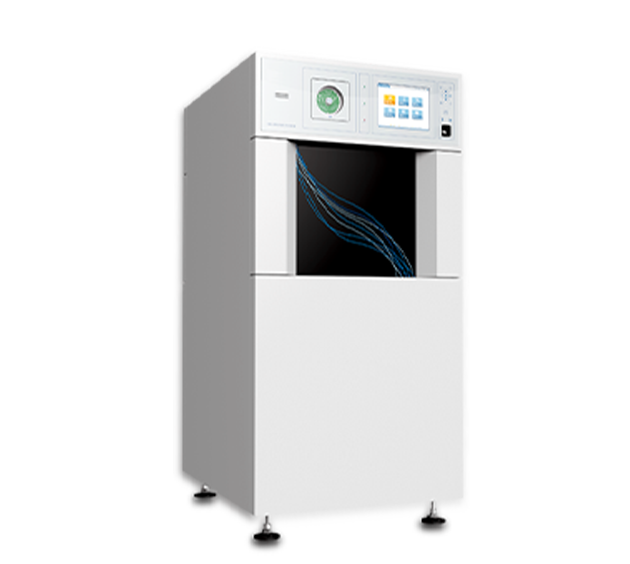

>>PS150 Low Temperature Plasma Sterilizer（for CSSD）

>>Features

10.4  inch LCD( liquid crystal display) and Android operating system;

Double LCD synchronous display front and back side for operators' convenience in 2 ereas;

Finger print identification and no upper limit to the

number of operators;

Support Wired LAN , WLAN and 3G;

2 USB connectors, which can export data record;

Text message reminder;

Video broadcast;

Cloud service, backup and recovery record data;

Real time curve: the curve shows the sterilization status for easy monitoring;

Online infection control knowledge, user manual

and maintenance instructions are available;

Update online medical industry news;

Update application online and offline;

Export record data as excel file;

Leybold vacuum pump from Germany.

>>Specifications

Type PS150

Overall Dimension H1725xW820xD926 (mm)

Door type Single automatic vertical sliding door

Capacity 150L (cylinder chamber)

Chamber Size Φ500×750(mm)

Sterilization Mode quick/standard/enhanced cycle

Sterilization Temp. 50℃～60℃

Power Rating 220V/50Hz，2.7kw

Control System Android system, intelligent management

Cassette 12 capsules for each cassette which can

be used for 6 cycles

>>Consumables for PS series Plasma Sterilizer

H O Sterilant 2 2

Hydrogen peroxide is the consumable specialized for plasma sterilizer. It can kill all microorganism including vegetative form of bacteria, spore, fungi and virus. As the mature and stable sterilant, hydrogen peroxide does no harm to people and environment.

Content of Hydrogen Peroxide: 730-780g/L

Biological Indicator Incubator

Used for detecting biological indicator of plasma sterilizer

Temperature Range: 20-60℃

Overall Dimension: 194x124x125 (mm)

Container Capacity: 24 injections/time

Indicator Dimension: ≤Φ8.9x32.5mm

Plasma Biological Indicator

Self-contained design realizes easy use and convenience

Bacteria strain: Bacillus stearothermophilus ATCC7953

Bacteria count: 1x106-5x106

After 48 hours, the sterilization result can be judged

Strictly accord with stands of ISO11138-1 and GB18281-1

Plasma Chemical Indicator Card

Chemical indicator card is printed with special indicator ink, whose color

changes according to the change of hydrogen peroxide density,

temperature and time. Judge the sterilization result based on color change.
