BAIX

Low Temperature Plasma

Sterilizer

PS series Plasma Sterilizer & Consumables

The first manufacturer in the world to apply Android system to plasma sterilizer, which indicates that infection control equipment break into informational and intelligent age.

The first manufacturer in the world to apply fingerprint identification to plasma sterilizer, which is easier and faster for operators to enter the interface, and increases the traceability.

The first plasma sterilizer in the world to be equipped with cloud service realizes the real-time monitoring anytime and anywhere.

The first plasma sterilizer in the world to have the function of text message notification informs the operator of running status, the sterilization start and finish time, equipment fault and maintenance, etc.

The first and only one in the world to play training video, update online industrial news, infection control knowledge, and user manual.

>>Certificates >>

ISO9001

ISO13485

CE

FSC

Parts of Patents

Smart Operating System

The equipment is applied with Android operating system, which can realize the real-time monitoring of machine. The sterilization record can be delivered to traceability system by wire or wireless connector. In this way, the machine is monitored real time.

Finger Print Identification

Customers can enter operation interface by finger print ID or password. By using finger print ID technology, it can prevent wrongly operation and trace the responsibility of operators.

Video Training

Customers can receive operation training and infection control knowledge, etc. from the machine.

Text Message Notification

The equipment operating staff can get the information about running status of machine by text message. (including running information and fault information)

Various Access to Network

Provide RJ 45 wire connector, WIFI module and 3G network module.

“Cloud” Service

After connection with network, the equipment can backup the date into “cloud” on Internet. Once there is any fault, the machine, after repaired, can synchronize data from “cloud”. Any operators who are authorized can monitor the running of machine anytime and anywhere. Main functions of “Cloud”: cloud backup, cloud recovery, cloud curve.

Online Service

Provide the latest news in medical field; Launch the latest equipment information; Update the newest industry knowledge; Provide operating manual and maintenance knowledge. Online service is available anytime.

H2O2 Injection System

H2O2 injection system guarantees the leakproof and increase and prolongs using life of hydrogen peroxide.

Excel File Export

Sterilization data can be exported as excel file so that the record is available for all staff.

Leybold Vacuum Pump

Leybold vacuum pump from Germany guarantees the vacuum effect, decrease the time of vacuumizing. It owns strong property of corrosion resistance and long using life.

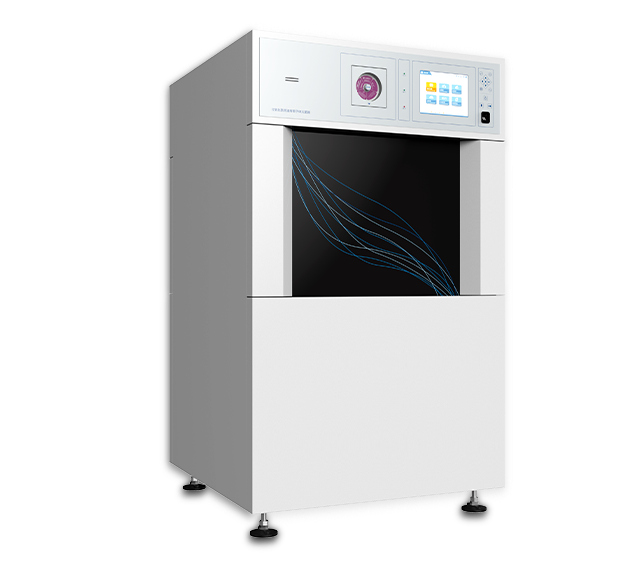

>>PS350 Low Temperature Plasma Sterilizer

>>Features 10.4 inch LCD( liquid crystal display) and Android operating system;

Double LCD synchronous display front and back side for operators' convenience in 2 ereas;

Finger print identification and no upper limit to the number of operators;

Support Wired LAN , WLAN and 3G;

2 USB connectors, which can export data record;

Text message reminder;

Video broadcast;

Cloud service, backup and recovery record data;

Real time curve: the curve shows the sterilization status for easy monitoring;

Online infection control knowledge, user manual and maintenance instructions are available;

Update online medical industry news;

Update application online and offline;

Export record data as excel file;

Leybold vacuum pump from Germany.

>>Specifications

Type PS350

Overall Dimension H1786xW1050xD1086 (mm)

Door Type Single automatic vertical sliding door

Capacity 350L (rectangle chamber)

Chamber Size H620xW720xD800(mm)

Sterilization Mode 3 or 4 layers

Items Shelf quick/standard/enhanced cycle

Sterilization Temp. 50℃～60

Power Rating 220V/50Hz，4.6kw

Control System Android system, intelligent management

Cassette 12 capsules for each cassette which can be used for 6 cycles

Plasma Chemical Indicator Tape

The chemical indicator tape is made up of plastic an adhesive material which is printed with indicator ink. When the density of hydrogen peroxide reach a certain degree, the color will change from blue to red, which indicate the items is sterilized by plasma.

Firm sealing and environmental friendly.

Hydrogen Peroxide Cassette

12 capsules for each, which can be used for 6 cycles.

Only available for BAIX Plasma Sterilizer

Non-Woven Fabrics

Non-woven fabric is made up of 100% polypropylene chip, non-toxic, non-fiber-releasing and high efficiency of blocking bacteria.

Used for high or low temperature sterilizer for single use, and no need for recycling and washing

Full compliance with environmental needs and easy for degradation and buring

Prevent cross-infection and increase the rate of infection control Long period of validity

Tyvek with Chemical Indicator Card

Tyvek is a combination of Dupont 1059B Tyvek paper and plastic sheet for medical use

Edge banding technology with 3 iron spots

No paper scrap and dust.

Stable indicator card and obvious color change Strong property of blocking bacteria and keeping items sterile for 180 days.

Various size for different requirements.
